miniPCがUSBからHDDを認識しているかの確認¶
sudo dmesg | grep sd
[ 0.016092] ACPI: SSDT 0x000000007552B000 005D0B (v02 CpuRef CpuSsdt 00003000 INTL 20200717)
[ 0.016095] ACPI: SSDT 0x0000000075528000 002935 (v02 SaSsdt SaSsdt 00003000 INTL 20200717)
[ 0.016099] ACPI: SSDT 0x0000000075524000 0033D3 (v02 INTEL IgfxSsdt 00003000 INTL 20200717)
[ 0.308001] ACPI: SSDT 0xFFFF8A8300EB1400 0001AB (v02 PmRef Cpu0Psd 00003000 INTL 20200717)
[ 0.320809] ACPI: SSDT 0xFFFF8A8300CE6000 001349 (v02 PmRef ApPsd 00003000 INTL 20200717)
[ 1.250032] sdhci: Secure Digital Host Controller Interface driver
[ 1.250039] sdhci: Copyright(c) Pierre Ossman
[ 1.251182] ahci 0000:00:17.0: flags: 64bit ncq sntf pm clo only pio slum part deso sadm sds
[ 1.252689] sdhci-pci 0000:00:1a.0: SDHCI controller found [8086:54c4] (rev 0)
[177931.594275] sd 2:0:0:0: Attached scsi generic sg0 type 0
[177931.595539] sd 2:0:0:0: [sda] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177931.595545] sd 2:0:0:0: [sda] 4096-byte physical blocks
[177931.595695] sd 2:0:0:0: [sda] Write Protect is off
[177931.595699] sd 2:0:0:0: [sda] Mode Sense: 2f 00 00 00
[177931.596052] sd 2:0:0:0: [sda] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[177931.596507] sd 2:0:0:0: [sda] Optimal transfer size 33553920 bytes not a multiple of physical block size (4096 bytes)
[177931.596904] sd 3:0:0:0: Attached scsi generic sg1 type 0
[177931.598199] sd 3:0:0:0: [sdb] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177931.598204] sd 3:0:0:0: [sdb] 4096-byte physical blocks
[177931.598402] sd 3:0:0:0: [sdb] Write Protect is off
[177931.598406] sd 3:0:0:0: [sdb] Mode Sense: 2f 00 00 00
[177931.598802] sd 3:0:0:0: [sdb] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[177931.599223] sd 3:0:0:0: [sdb] Optimal transfer size 33553920 bytes not a multiple of physical block size (4096 bytes)
[177931.600264] sd 4:0:0:0: Attached scsi generic sg2 type 0
[177931.602408] sd 4:0:0:0: [sdc] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177931.602414] sd 4:0:0:0: [sdc] 4096-byte physical blocks
[177931.602626] sd 4:0:0:0: [sdc] Write Protect is off
[177931.602630] sd 4:0:0:0: [sdc] Mode Sense: 2f 00 00 00
[177931.602990] sd 4:0:0:0: [sdc] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[177931.603483] sd 4:0:0:0: [sdc] Optimal transfer size 33553920 bytes not a multiple of physical block size (4096 bytes)
[177931.855011] sd 5:0:0:0: [sdd] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177931.855016] sd 5:0:0:0: [sdd] 4096-byte physical blocks
[177931.855226] sd 5:0:0:0: [sdd] Write Protect is off
[177931.855229] sd 5:0:0:0: [sdd] Mode Sense: 2f 00 00 00
[177931.855603] sd 5:0:0:0: [sdd] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[177931.856037] sd 5:0:0:0: [sdd] Optimal transfer size 33553920 bytes not a multiple of physical block size (4096 bytes)
[177932.143823] sd 6:0:0:0: Attached scsi generic sg4 type 0
[177932.146412] sd 6:0:0:0: [sde] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177932.146416] sd 6:0:0:0: [sde] 4096-byte physical blocks
[177932.146615] sd 6:0:0:0: [sde] Write Protect is off
[177932.146618] sd 6:0:0:0: [sde] Mode Sense: 2f 00 00 00
[177932.147040] sd 6:0:0:0: [sde] Write cache: enabled, read cache: enabled, doesn't support DPO or FUA
[177932.147531] sd 6:0:0:0: [sde] Optimal transfer size 33553920 bytes not a multiple of physical block size (4096 bytes)
[177932.569405] sd 4:0:0:0: [sdc] Attached SCSI disk
[177932.722000] sd 2:0:0:0: [sda] Attached SCSI disk
[177932.765726] sd 3:0:0:0: [sdb] Attached SCSI disk
[177933.106148] sd 5:0:0:0: [sdd] Attached SCSI disk
[177933.518688] sd 6:0:0:0: [sde] Attached SCSI disk
[604106.481853] sd 4:0:0:0: [sdc] Synchronizing SCSI cache
[604106.725815] sd 4:0:0:0: [sdc] Synchronize Cache(10) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[604106.773952] sd 2:0:0:0: [sda] Synchronizing SCSI cache
[604107.013802] sd 2:0:0:0: [sda] Synchronize Cache(10) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[604107.057950] sd 3:0:0:0: [sdb] Synchronizing SCSI cache
[604107.297789] sd 3:0:0:0: [sdb] Synchronize Cache(10) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[604107.349881] sd 5:0:0:0: [sdd] Synchronizing SCSI cache
[604107.601774] sd 5:0:0:0: [sdd] Synchronize Cache(10) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[604107.645863] sd 6:0:0:0: [sde] Synchronizing SCSI cache
[604107.885776] sd 6:0:0:0: [sde] Synchronize Cache(10) failed: Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
[688984.674348] sd 2:0:0:1: Attached scsi generic sg0 type 0
[688984.678814] sd 2:0:0:1: [sda] 62914560 512-byte logical blocks: (32.2 GB/30.0 GiB)
[688984.679415] sd 2:0:0:1: [sda] Write Protect is off
[688984.679422] sd 2:0:0:1: [sda] Mode Sense: 43 00 10 08
[688984.680516] sd 2:0:0:1: [sda] Write cache: enabled, read cache: enabled, supports DPO and FUA
[688984.681588] sd 2:0:0:1: [sda] Optimal transfer size 16384 logical blocks > dev_max (8192 logical blocks)
[688984.687627] sd 2:0:0:1: alua: transition timeout set to 60 seconds
[688984.687635] sd 2:0:0:1: alua: port group 00 state A non-preferred supports TOlUSNA
[688984.694348] sd 2:0:0:1: [sda] Attached SCSI disk
[693392.317924] sd 2:0:0:1: [sda] Synchronizing SCSI cache
[693392.318547] sd 2:0:0:1: Capacity data has changed
[693435.634046] sd 2:0:0:1: Attached scsi generic sg0 type 0
[693435.638637] sd 2:0:0:1: [sda] 629145600 512-byte logical blocks: (322 GB/300 GiB)
[693435.639159] sd 2:0:0:1: [sda] Write Protect is off
[693435.639164] sd 2:0:0:1: [sda] Mode Sense: 43 00 10 08
[693435.639938] sd 2:0:0:1: [sda] Write cache: enabled, read cache: enabled, supports DPO and FUA
[693435.641091] sd 2:0:0:1: [sda] Optimal transfer size 16384 logical blocks > dev_max (8192 logical blocks)
[693435.649499] sd 2:0:0:1: alua: transition timeout set to 60 seconds
[693435.649507] sd 2:0:0:1: alua: port group 00 state A non-preferred supports TOlUSNA
[693435.655414] sd 2:0:0:1: [sda] Attached SCSI disk
[695091.083103] Installing knfsd (copyright (C) 1996 okir@monad.swb.de).
[695091.218061] NFSD: Using nfsdcld client tracking operations.
[1013384.253890] sd 2:0:0:1: [sda] Synchronizing SCSI cache
[1013780.574704] sd 2:0:0:1: Attached scsi generic sg0 type 0
[1013780.579774] sd 2:0:0:1: [sda] 629145600 512-byte logical blocks: (322 GB/300 GiB)
[1013780.580371] sd 2:0:0:1: [sda] Write Protect is off
[1013780.580377] sd 2:0:0:1: [sda] Mode Sense: 43 00 10 08
[1013780.581594] sd 2:0:0:1: [sda] Write cache: enabled, read cache: enabled, supports DPO and FUA
[1013780.582757] sd 2:0:0:1: [sda] Optimal transfer size 16384 logical blocks > dev_max (8192 logical blocks)
[1013780.586481] sd 2:0:0:1: alua: transition timeout set to 60 seconds
[1013780.586488] sd 2:0:0:1: alua: port group 00 state A non-preferred supports TOlUSNA
[1013780.595997] sd 2:0:0:1: [sda] Attached SCSI disk
c0a21137@archive-s:~$ sudo dmesg | grep sd | grep "8.00\sTB"
[177931.595539] sd 2:0:0:0: [sda] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177931.598199] sd 3:0:0:0: [sdb] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177931.602408] sd 4:0:0:0: [sdc] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177931.855011] sd 5:0:0:0: [sdd] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)
[177932.146412] sd 6:0:0:0: [sde] 15628053168 512-byte logical blocks: (8.00 TB/7.28 TiB)

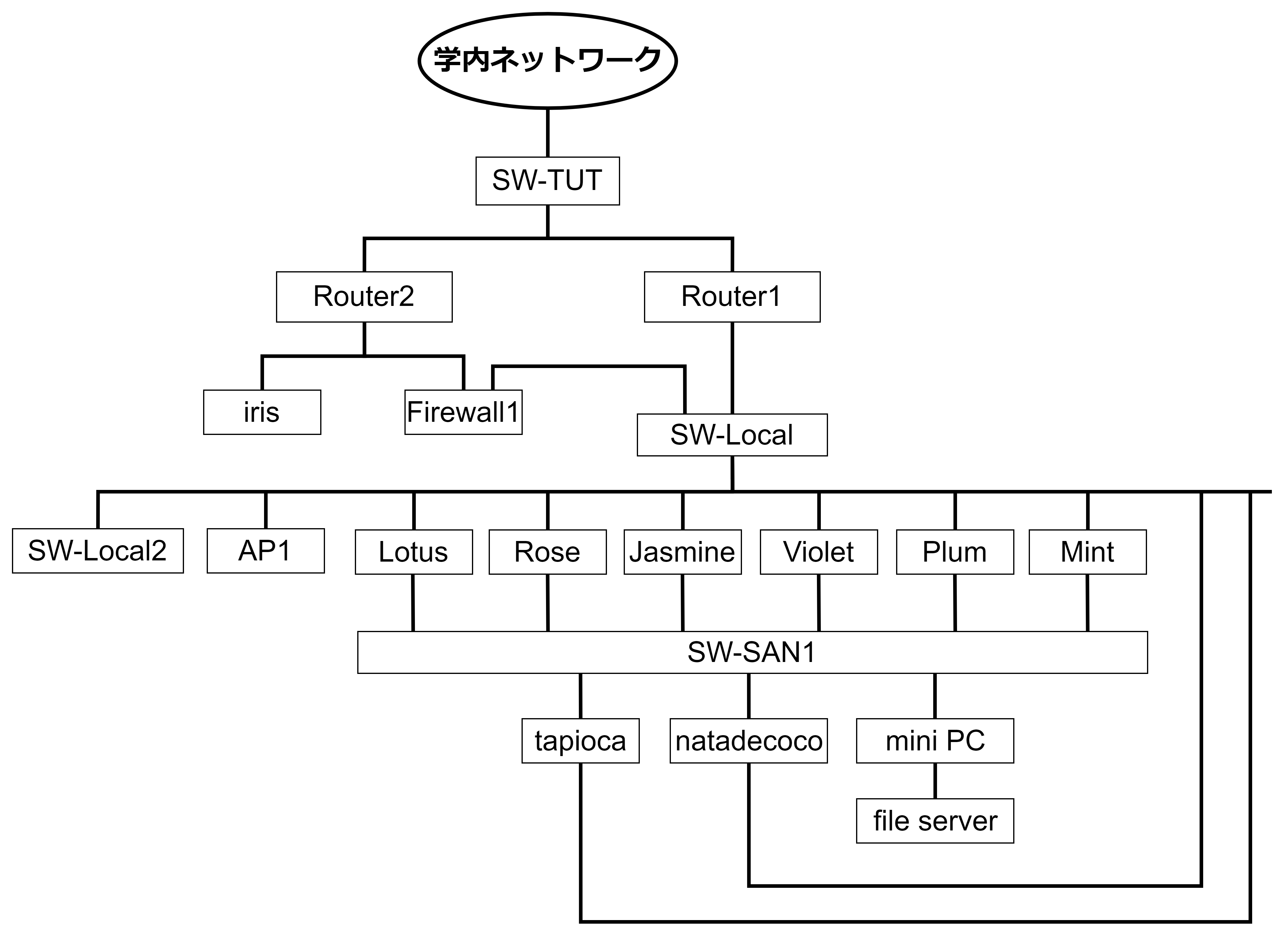

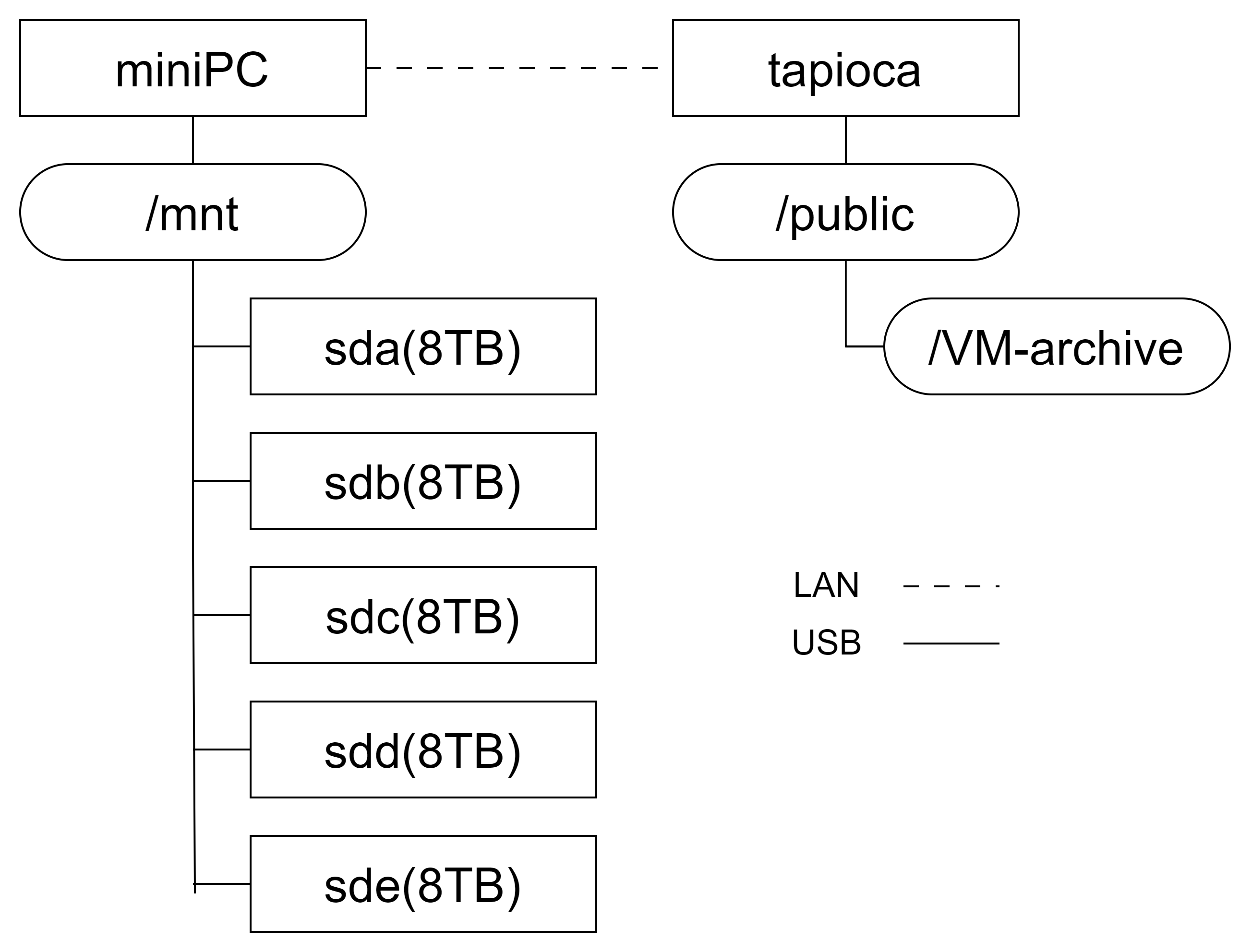

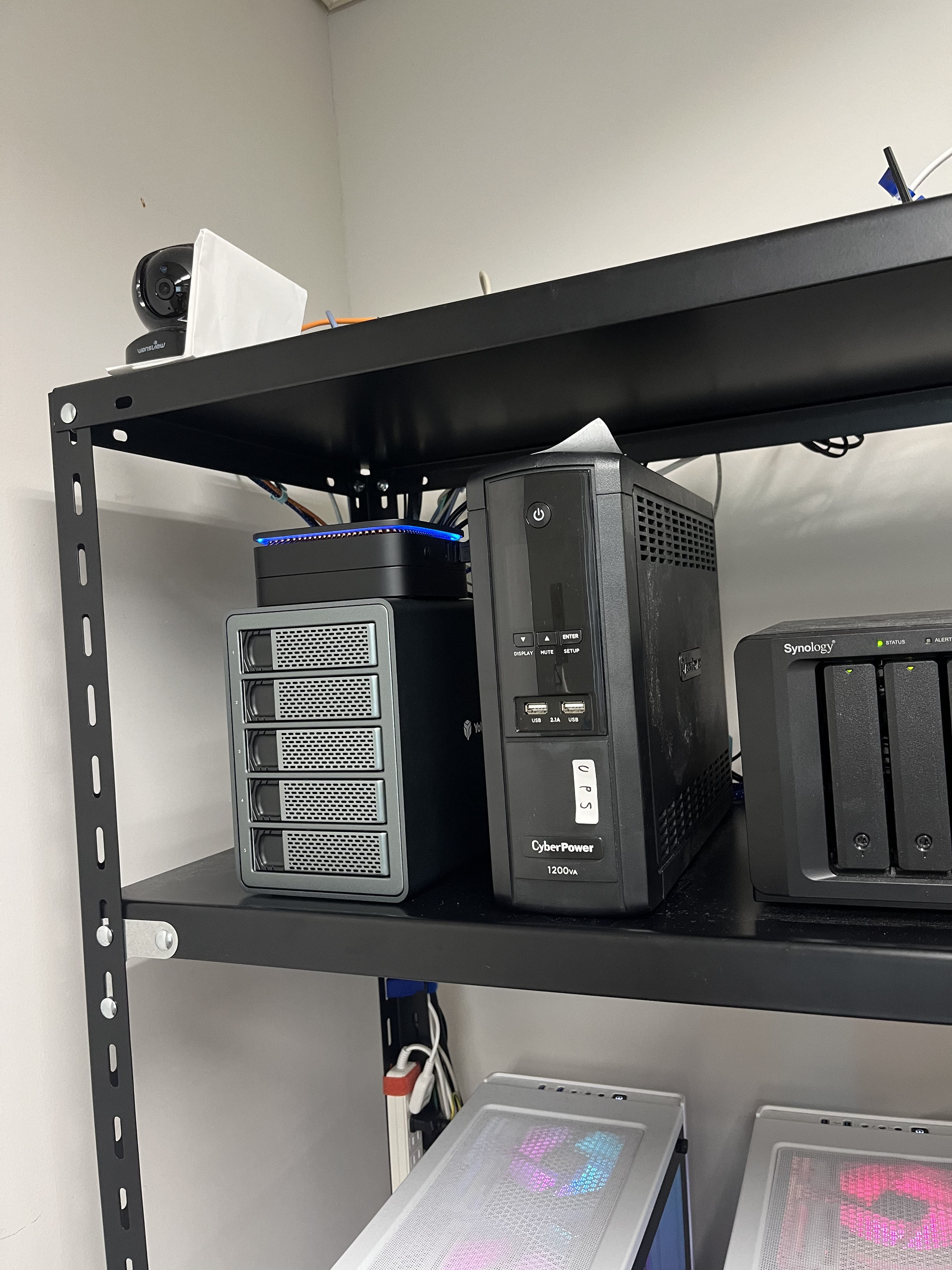

アーカイブサーバ ハードウェア ファイル構成図
以下のコードで接続されているハードウェアが確認できる
sudo lshw
*-scsi
physical id: 1
logical name: scsi2
*-disk
description: SCSI Disk
product: Storage
vendor: SYNOLOGY
physical id: 0.0.1
bus info: scsi@2:0.0.1
logical name: /dev/sda
version: 4.0
serial: 009dc67e-e4a5-41f1-acf7-fdad331d06e6
size: 300GiB (322GB)
configuration: ansiversion=5 logicalsectorsize=512 sectorsize=512
現在iSCSIを使って接続されているターゲット一覧
c0a21137@archive-s:~$ sudo iscsiadm -m session
tcp: [11] 192.168.110.5:3260,1 iqn.2000-01.com.synology:tapioca.Target-11.58838159382 (non-flash)
iSCSI helpコマンド https://support.citrix.com/article/CTX140118/helpful-iscsi-commands
c0a21137@archive-s:~$ sudo iscsiadm -m session -P3
iSCSI Transport Class version 2.0-870
version 2.1.5
Target: iqn.2000-01.com.synology:tapioca.Target-11.58838159382 (non-flash)
Current Portal: 192.168.110.5:3260,1
Persistent Portal: 192.168.110.5:3260,1
**********
Interface:
**********
Iface Name: default
Iface Transport: tcp
Iface Initiatorname: iqn.2004-10.com.ubuntu:01:84de25ddfc37
Iface IPaddress: 192.168.110.11
Iface HWaddress: default
Iface Netdev: default
SID: 11
iSCSI Connection State: LOGGED IN
iSCSI Session State: LOGGED_IN
Internal iscsid Session State: NO CHANGE
*********
Timeouts:
*********
Recovery Timeout: 120
Target Reset Timeout: 30
LUN Reset Timeout: 30
Abort Timeout: 15
*****
CHAP:
*****
username: <empty>
password: ********
username_in: <empty>
password_in: ********
************************
Negotiated iSCSI params:
************************
HeaderDigest: None
DataDigest: None
MaxRecvDataSegmentLength: 262144
MaxXmitDataSegmentLength: 262144
FirstBurstLength: 65536
MaxBurstLength: 262144
ImmediateData: Yes
InitialR2T: Yes
MaxOutstandingR2T: 1
************************
Attached SCSI devices:
************************
Host Number: 2 State: running
scsi2 Channel 00 Id 0 Lun: 1
Attached scsi disk sda State: running
物理的に接続されているディスクの一覧を表示
sudo fdisk -l
c0a21137@archive-s:~$ sudo fdisk -l
Disk /dev/loop1: 63.91 MiB, 67014656 bytes, 130888 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop2: 86.99 MiB, 91213824 bytes, 178152 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop3: 86.99 MiB, 91213824 bytes, 178152 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop4: 40.43 MiB, 42393600 bytes, 82800 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop5: 40.86 MiB, 42840064 bytes, 83672 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/loop6: 63.91 MiB, 67010560 bytes, 130880 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
Disk /dev/nvme0n1: 931.51 GiB, 1000204886016 bytes, 1953525168 sectors
Disk model: Samsung SSD 980 1TB
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 16384 bytes / 131072 bytes
Disklabel type: gpt
Disk identifier: D6F9C039-0E5F-46AD-B3F8-95ADE272BC5B
Device Start End Sectors Size Type
/dev/nvme0n1p1 2048 2203647 2201600 1G EFI System
/dev/nvme0n1p2 2203648 6397951 4194304 2G Linux filesystem
/dev/nvme0n1p3 6397952 1953521663 1947123712 928.5G Linux filesystem
Disk /dev/mapper/ubuntu--vg-ubuntu--lv: 928.46 GiB, 996923146240 bytes, 1947115520 sectors
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 16384 bytes / 131072 bytes
Disk /dev/sda: 300 GiB, 322122547200 bytes, 629145600 sectors
Disk model: Storage
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 512 bytes
I/O size (minimum/optimal): 512 bytes / 512 bytes
現状02/27・28¶
8TBのHDD5つが認識されていないためマウントする必要がある ここでHDDとminiPCのUSBを抜きなおししてしまった． dmesg(OSのから書き込まれるlog?)によれば[177933.518688]まではOS上では5枚のHDDだと考えられる「sda」「sdb」「sdc」「sdd」「sde」が認識されていた． しかし，[604106.481853]からそれぞれにエラーが発生しており，先ほどの抜き差しが原因だと考えられる． 今現在，ディスクの一覧を確認すると容量が300GBの「sda」とminiPCにもともと組み込まれているSSDが表示される この300GBの「sda」はおそらくiSCSIのインタフェースに内蔵されている容量だと考えられる．
OSに「sda」「sdb」「sdc」「sdd」「sde」をもう一度再認識させる必要がある． ・miniPCのリブート？再起動を行いもう一度認識させる？
どこで実行するのかどこを経由するのかを明確に図があるといいよね
02/29¶
前日のHDDの問題は解決した miniPCをリブートし，HDDラックの電源をOFF，もう一度電源を入れなおす．もう一度miniPCをリブート 以上で再認識することができた
再認識した結果
sudo fdisk -l
再認識された！！
Disk /dev/sda: 7.28 TiB, 8001563222016 bytes, 15628053168 sectors
Disk model: EAZZ-00BKLB0
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 3167EC22-4AAD-413E-BCE5-05AF1AAF4617
Device Start End Sectors Size Type
/dev/sda1 2048 15628052479 15628050432 7.3T Linux filesystem
Disk /dev/sdb: 7.28 TiB, 8001563222016 bytes, 15628053168 sectors
Disk model: EAZZ-00BKLB0
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: 71740B85-40D4-4F1C-B36C-D0473E97E6BB
Device Start End Sectors Size Type
/dev/sdb1 2048 15628052479 15628050432 7.3T Linux filesystem
Disk /dev/sdc: 7.28 TiB, 8001563222016 bytes, 15628053168 sectors
Disk model: EAZZ-00BKLB0
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: D23D2C5C-5CB8-4319-A108-D3E613611C90
Device Start End Sectors Size Type
/dev/sdc1 2048 15628052479 15628050432 7.3T Linux filesystem
Disk /dev/sdd: 7.28 TiB, 8001563222016 bytes, 15628053168 sectors
Disk model: EAZZ-00BKLB0
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: C2208AF4-ED98-473A-858C-C929356710B3
Device Start End Sectors Size Type
/dev/sdd1 2048 15628052479 15628050432 7.3T Linux filesystem
Disk /dev/sde: 7.28 TiB, 8001563222016 bytes, 15628053168 sectors
Disk model: EAZZ-00BKLB0
Units: sectors of 1 * 512 = 512 bytes
Sector size (logical/physical): 512 bytes / 4096 bytes
I/O size (minimum/optimal): 4096 bytes / 4096 bytes
Disklabel type: gpt
Disk identifier: A178F4D2-D36F-4D2A-8068-039E251EF17C
Device Start End Sectors Size Type
/dev/sde1 2048 15628052479 15628050432 7.3T Linux filesystem
